Best for replacementsA-900-X LED · Trim plate included
A-900-X VacPort with LED
The retail VacPort with LED. Comes with the trim plate, screws, two wire nuts and the manual, in a VacPort box.
$36.61
The central vacuum sweep port
Stop replacing your sweep port.
Most toe-kick dustpans run on a spring-loaded lever, and that spring is what wears out. The VacPort® has no springs at all. Open the door, the vacuum starts and the LED comes on, and two small magnets hold the door open while you sweep.
- Fits most central vacuum brands
- Trim plate covers old openings
- LED or no LED
- Black or white
- 2-year warranty
InterVac® · Clean made Simple®
How it works
It replaces the dust pan.
A VacPort sits low in the toe kick or baseboard. Everything you sweep goes down the pipe to your central vacuum, not back into the room from a dust pan.
1
Open the door
Tip it open with your toe. The vacuum starts, and on LED models the light comes on across the floor in front of the port.
2
Sweep it in
Broom the pile straight into the opening. Crumbs, dust, hair, cat litter, sand. No bending, no dust pan, no hose.
3
Close it
Close the door and the vacuum stops. The dirt is already in your central vacuum's bag.
Why it lasts
No springs. Nothing to snap.
If you have replaced a sweep port before, you already know the part that gave out. On a spring-lever dustpan the toe lever and its spring flex every single time someone uses it, and repair kits for that lever and spring are sold across the industry.
The VacPort is built differently. There is no spring anywhere in it: the door swings on a coated steel rod, it closes against a foam seal, and two small magnets hold it open while you sweep. Open the door and the vacuum starts. The housing, door and bridge are PC/ABS, and every VacPort carries a 2-year warranty.
Why a VacPort outlasts a spring lever
Replacing another brand
Pull the old one. The trim plate covers the hole.
The A-900-X and A-910-X come with a trim plate that screws on through the old dust pan's holes and covers the old opening, so you are not patching drywall or buying a new toe kick.
- Opening: 6-1/8 in. wide by 2-1/2 in. high, flush with the floor
- Reuses the pipe and the two low-voltage wires already there
- Works on 24V AC or DC; on DC you may need to swap the two wires
- Fits most central vacuum brands. Not for OVO systems
The range
Start here
Two VacPorts cover nearly every home: with the LED or without it. Both come with the trim plate. If you are adding one where there was none, the A-950-X kit has the fittings in the box. The "-X" is the color: -E black, -W white.
A-910-X No LED · Trim plate included
A-910-X VacPort, no LED
The retail VacPort without the LED. Comes with the trim plate, screws and the manual, in a VacPort box.
$36.39
Everything in one boxA-950-X LED · Trim plate included

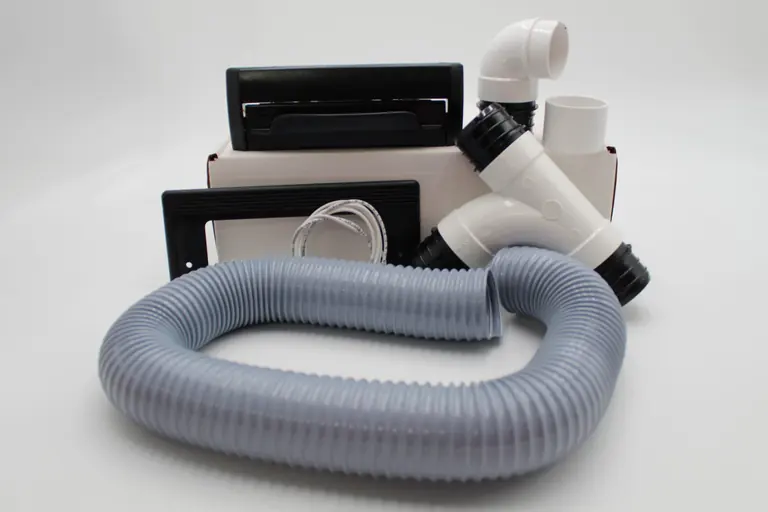

A-950-X VacPort Complete Install Kit
An LED VacPort with trim plate plus every fitting to tie it in: P-21 elbow, P-30 coupling, P-41 sweep tee, 3 ft of X640 hose, 4 D-900-E couplings, 6 ft of wire and 2 wire nuts.
$65.96
Where it goes
Anywhere you sweep.
The kitchen toe kick is the classic spot, because that is where the crumbs end up. But a VacPort earns its place anywhere a broom does the work.

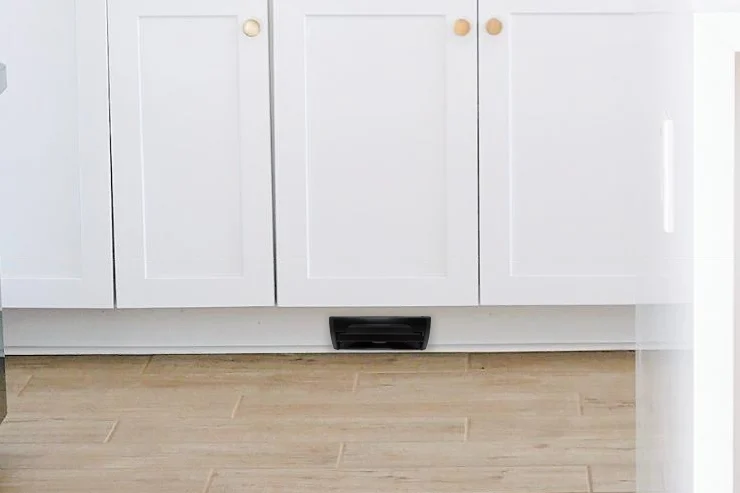

- Kitchen toe kicks and islands
- Bathroom vanities, where hair collects
- Laundry, mud rooms and entryways
- Garages and workshops
- Salons and grooming rooms
- Pet feeding areas and litter spots

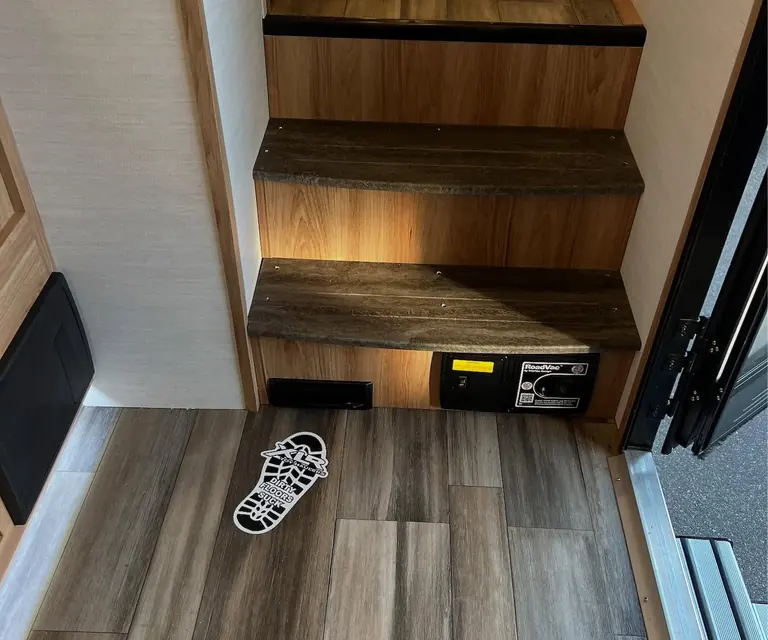

- RVs and boats with a piped central vacuum
Also here
The rest of the central vacuum parts
Inlet valves
Standard wall inlets, a utility valve and mounting plates. The hose plugs in here.
Inlet valves →Pipe fittings
The P-series elbows, tees, couplings, sweep tees, installation hose and fitting sets.
Fittings →Universal tool kits
35+ ft stretch hose and tools that fit most 32 mm central vacuums, including Beam, NuTone and Vacuflo.
Tool kits →
FAQ
Questions
What is a VacPort?
A sweep-in door set at floor level in a kitchen toe kick or a baseboard, tied into your central vacuum pipe. Open the door and the vacuum starts. Sweep the dirt in and it goes down the pipe to the central vacuum's bag. It takes the place of a dust pan.
Why do other sweep ports keep breaking?
Most toe-kick dustpans start the vacuum with a spring-loaded lever you press with your foot. That lever and spring flex every time you use it, and they are sold as a repair kit for a reason. On a VacPort you open the door and two small magnets hold it open. A VacPort has no springs at all.
Will it fit my central vacuum?
Almost certainly. A VacPort works with most central vacuum brands that start from a 24V low-voltage circuit, AC or DC. It does not work with OVO systems. See the compatibility page.
My old port left a bigger hole. Will a VacPort cover it?
Yes. The A-900-X and A-910-X come with a trim plate made for it: it screws on through the old dust pan's holes, you trace inside it and cut to the line, and it covers the old opening. The VacPort opening is 6-1/8 in. wide by 2-1/2 in. high. See the replacement guide.
Does the hose plug into a VacPort?
No. Nothing plugs into the front. The pipe or installation hose connects to the back of it. Your hose goes into an inlet valve, which is a different part. Most homes have both on the same pipe system.
Where can I put one?
Anywhere you sweep: kitchen toe kicks, bathroom vanities, laundry and mud rooms, garages, workshops, salons, pet areas, RVs and boats. If a central vacuum pipe can reach it, a VacPort can go there.
Where do I buy it?
Every Buy button on this site takes you straight to checkout at intervacdesign.com, InterVac's own store, with the item already in your cart. Orders over $199 ship free in the continental US.
Ready to stop replacing your sweep port?
Pick a VacPort, check out on intervacdesign.com. Orders over $199 ship free in the continental US.
